Lada Niva 2101-2107 Cylinder Head Bolt M12*115 Hex Head

Can be used on any Lada Niva or Classic Lada (except Diesel engines)

Hex head type.

For one car you need 10 bolts.

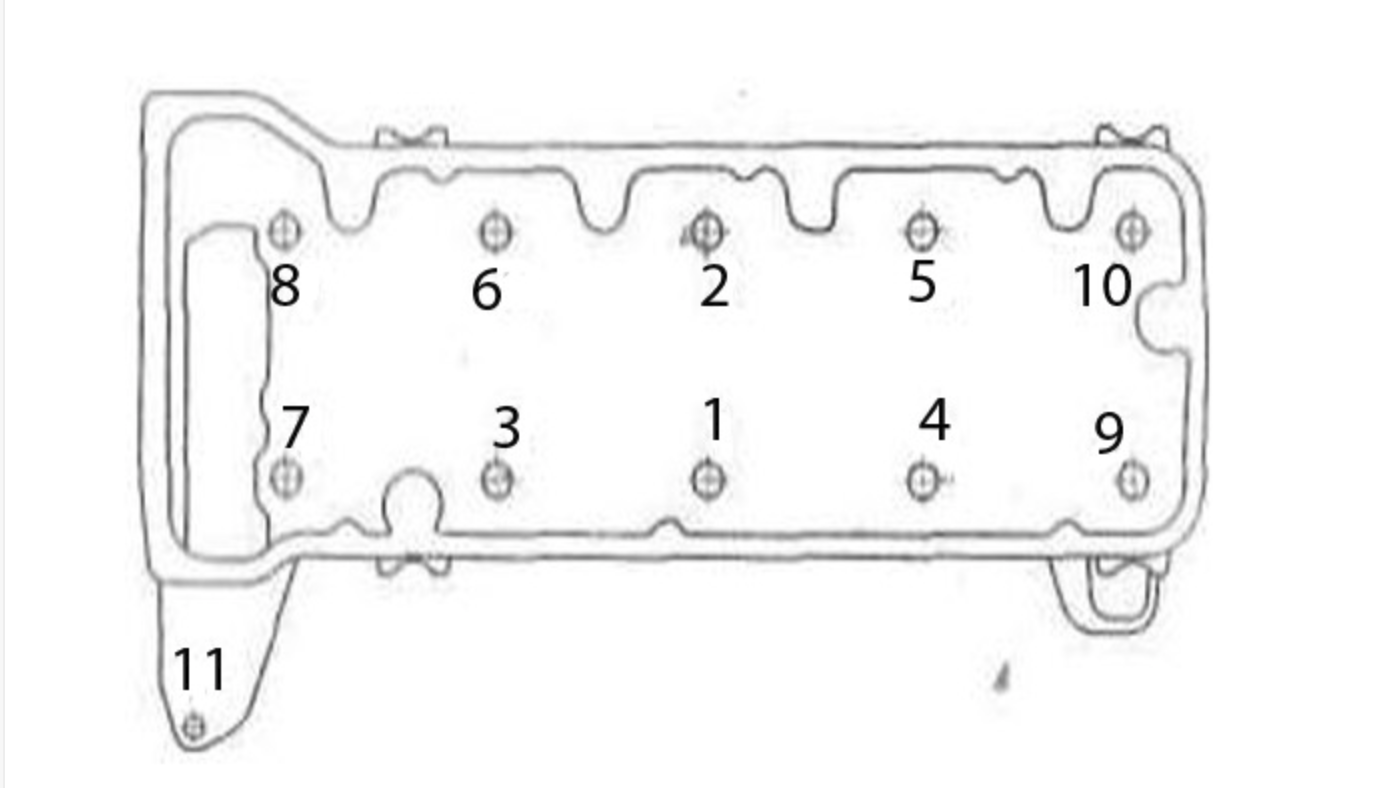

Tightening the cylinder head is performed in 5 steps:
1) Tighten bolts 1-10 to a torque of 20 N⋅m (2 kgf⋅m)
2) Tighten bolts 1-10 to a torque of 69.4-85.7 N⋅m (7.1-8.7 kgf⋅m)
3) Tighten bolt 11 to a torque of 31.4-39.1 N⋅m (3.2-4 kgf⋅m)
4) Tighten bolts 1-10 by 90 degrees
5) Tighten bolts 1-10 by 90 degrees
