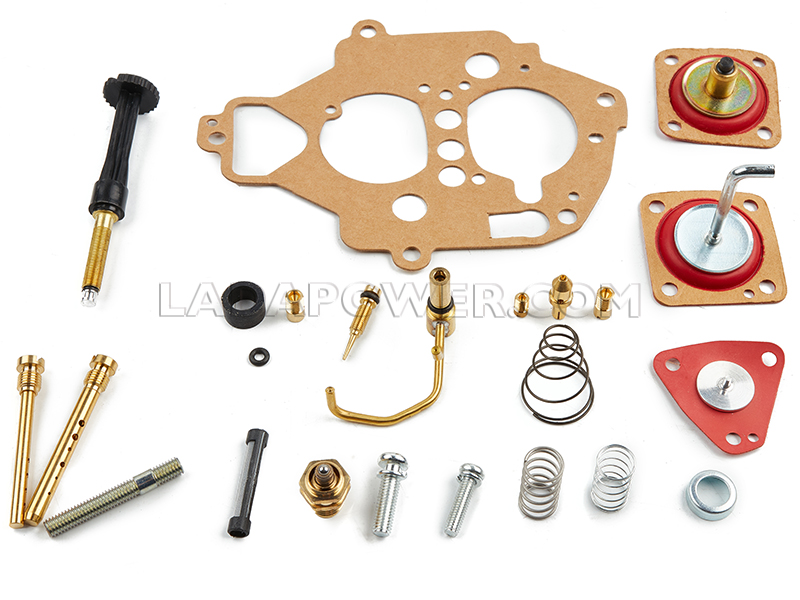

Lada Samara 1500 Solex Carburetor Repair Kit

Carburetor repair kit for Lada Samara 21083 With a 1500cc Engine.

1. Main fuel jet 90 — 1 pc.

2. Damper jet 40 — 1 pc.

3. Main fuel jet 95 — 1 pc.

4. Protective casing of the sealing ring type — 1 pc.

5. Sealing ring of the electromagnetic valve — 1 pc.

6. Float chamber gasket — 1 pc.

7. Detonator spring — 1 pc.

8. Damper spring — 1 pc.

9. Accelerator pump spring — 1 pc.

10. Adjustment screw — 1 pc.

11. Fuel inlet filter screen — 1 pc.

12. O-ring Ø5.5 × Ø1.5 — 1 pc.

13. Combined screw with Phillips head M5×18 — 1 pc.

14. Detonator diaphragm assembly — 1 pc.

15. Main chamber emulsion tube assembly — 1 pc.

16. Auxiliary chamber emulsion tube assembly — 1 pc.

17. Accelerator pump diaphragm assembly — 1 pc.

18. Mixture adjustment screw assembly — 1 pc.

19. Damper diaphragm assembly — 1 pc.

20. Reed (flapper) valve assembly — 1 pc.

21. Accelerator pump nozzle assembly — 1 pc.
