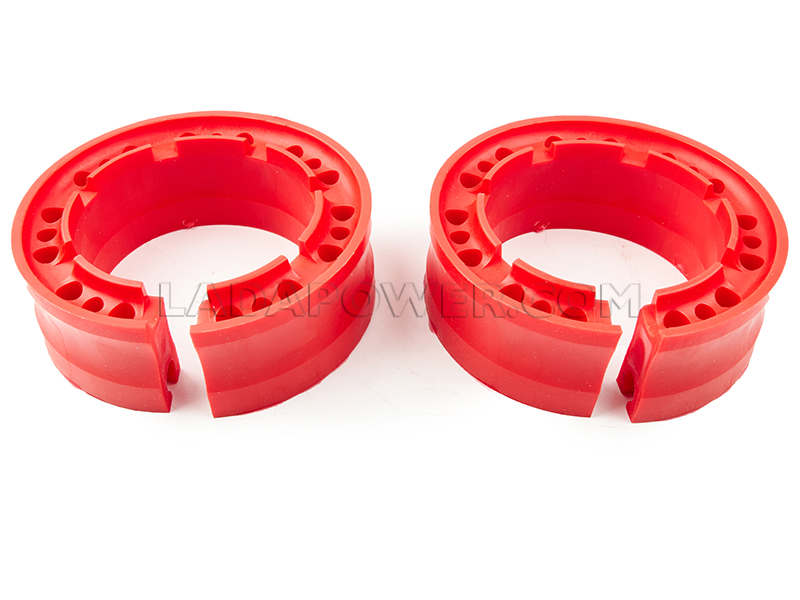

Lada 2101-2107 / Niva Rear Coil Spring Spacer Buffer Kit Polyurethane Red CS20

CS20 Buffers – Designed for Rear Springs of VAZ 2101-2107 and Niva

Key Highlights:

• Rear Axle Only: Specifically designed for installation on the rear springs of VAZ 2101-2107 and Niva.
• Smooth Ride: Improves comfort when driving over potholes and speed bumps.
• Increased Ground Clearance: Raises clearance by 1-2.5 cm without side effects.
• Improved Stability: Reduces body roll during turns and braking.
• Suspension Protection: Shields suspension from damage and extends shock absorber lifespan.

CS20 Buffers – Reliable Protection and Performance
CS20 polyurethane spring buffers are an affordable and efficient solution for upgrading your car’s suspension system. Specifically designed for the rear springs of VAZ 2101-2107 and Niva vehicles, they improve performance, stability, and durability.

How Do CS20 Buffers Work?
Installed between the coils of the spring, the buffers gently limit the spring’s compression, protecting the suspension system from excessive wear. This increases the durability of all suspension components, shields the shock absorbers from bottoming out, and ensures better vehicle stability during operation.

Why Choose CS20 Buffers?

1. Durable Polyurethane Material:

   • Made from high-quality polyurethane with 65-70 ShA hardness.
   • Enhanced elasticity and strength to withstand extreme compression, tension, and torsion loads.
   • Red polyurethane components offer superior wear resistance and low residual deformation.

2. Advanced Design with Special Grooves:

   • Secure installation without additional fasteners or clamps.

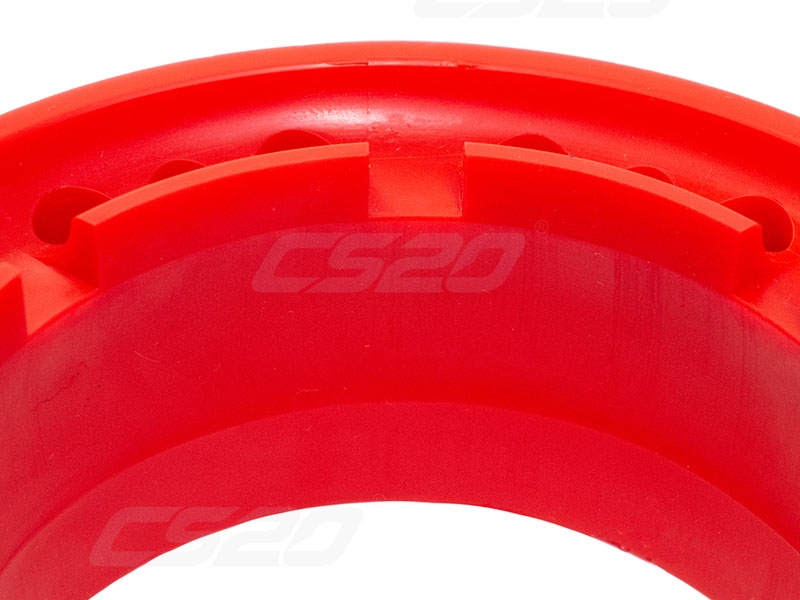

   • Unique grooves and inner borders provide a snug fit, preventing displacement even under maximum spring extension.

3. Innovative Technology:

   • Vertical technological recesses within the mounting groove (not through-holes) for added strength without extra stiffness.

4. Universal Sizing:

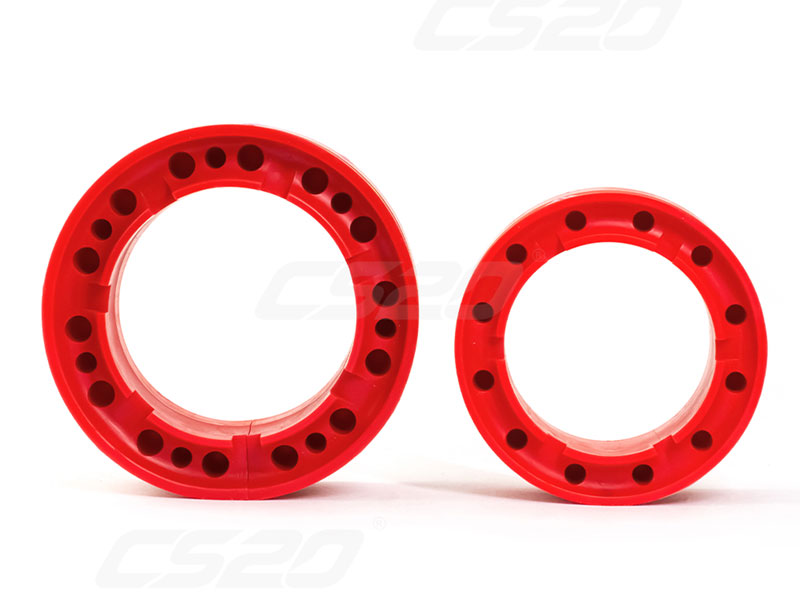

   • Suitable for springs with diameters of 120-140 mm.
   • Works perfectly with rear springs of VAZ 2101-2107 and Niva vehicles.

Specifications:

• Thickness: 25 mm, ensuring compatibility without interfering with the suspension system.
• Width: 50 mm, with a working width of 26 mm between grooves.
• Ground Clearance: Increases vehicle clearance by 20-25 mm.
• Temperature Range: Operates flawlessly between -60°C and +120°C.
• Chemical and Environmental Resistance: Resistant to road chemicals, UV exposure, and harsh weather conditions.

Simple Installation:

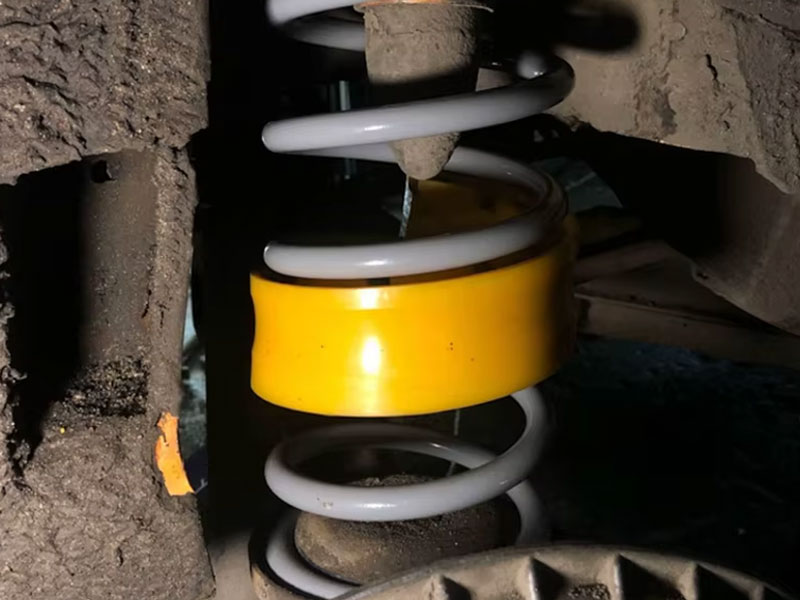

Installing CS20 buffers is quick and easy:

1. Jack up the vehicle to relieve tension on the spring.
2. Clean the spring coils to remove dirt and debris.
3. Fit the buffer into place, ensuring the coils align with the grooves.
4. Lower the car; the spring will compress and securely hold the buffer.

No need to remove the springs! The ideal installation position is the center of the spring for maximum efficiency.

Upgrade Your Suspension Today!
CS20 buffers are the most cost-effective way to protect your suspension system, improve stability, and increase ground clearance. Check out our full range in the catalog!
