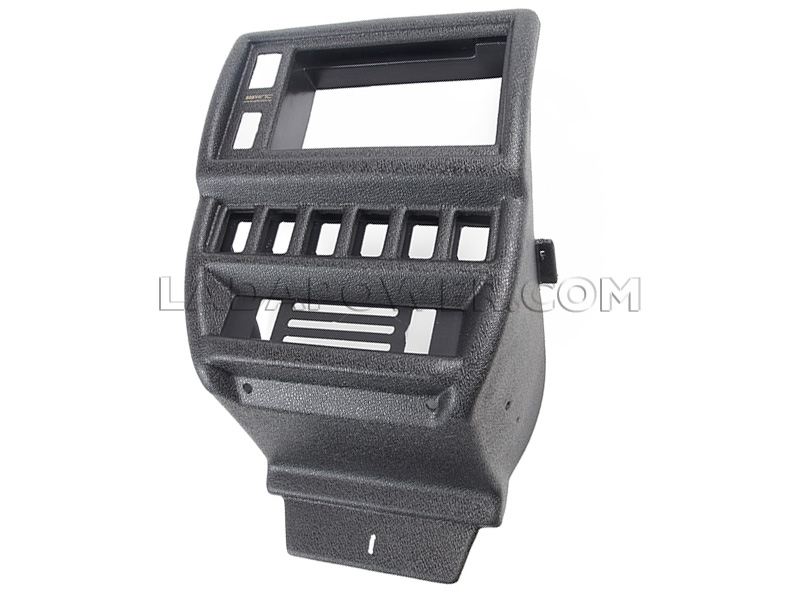

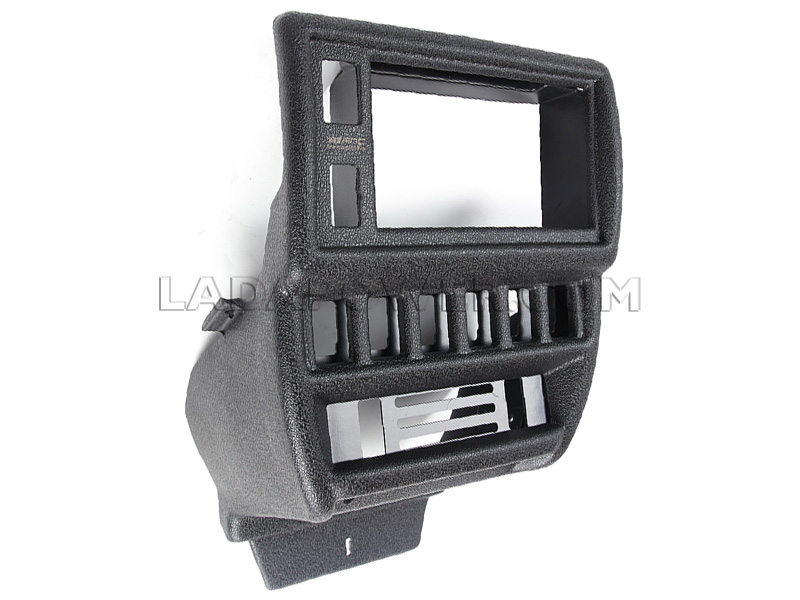

The frame is intended for installation on the standard dashboard 21213(21214, 21218)-5325010 instead of the standard console (radio receiver mounting panel). Used as a transition frame for 2DIN radio.
ATTENTION! Not suitable for LADA NIVA LEGEND, which has a new design instrument panel with an electronic heater control unit instead of a lever one, as well as new controls (buttons and switches).
Also doesn't fit old 1600 Lada Niva.
The frame has an ergonomic design.

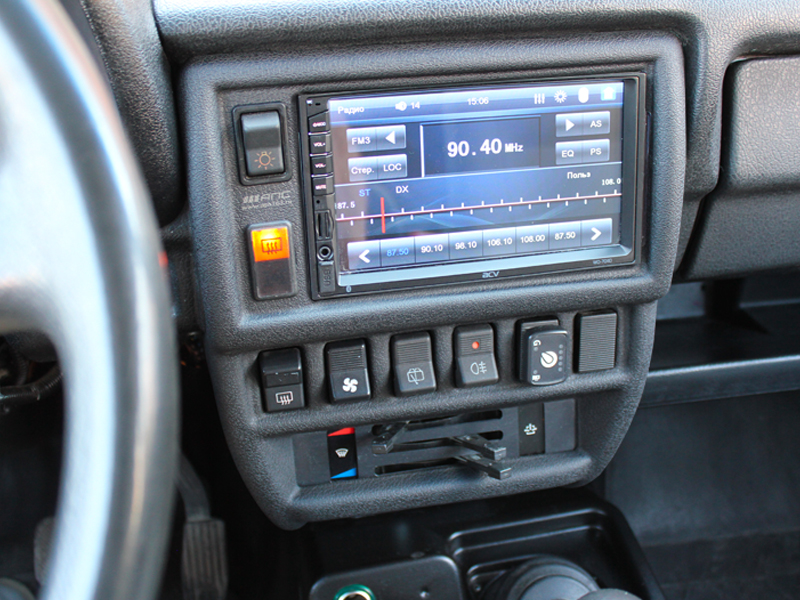

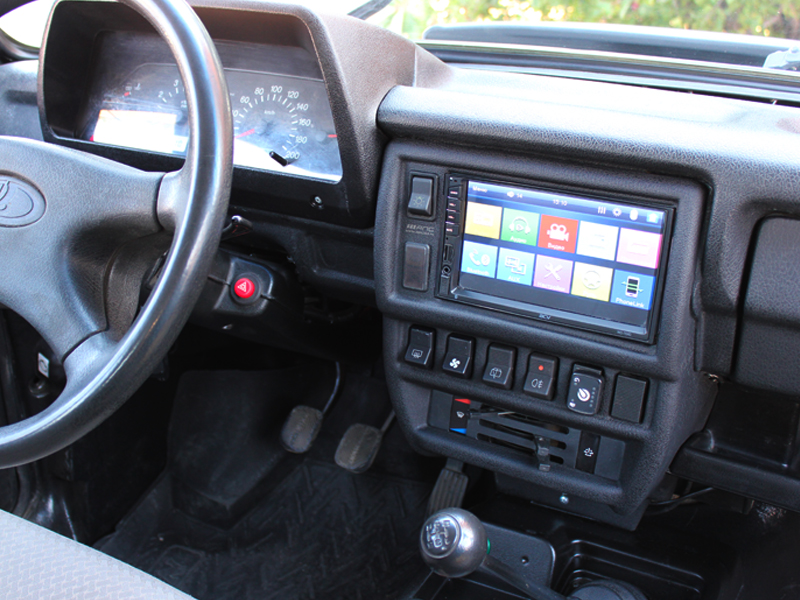

The radio is located at the top of the console, and the heater control levers are at the bottom.
The frame allows you to install 2DIN radios
The depth of the installed radio together with the pads and wires should not exceed 110mm.
All controls are transferred from the standard instrument panel with the exception of the central air duct nozzle.
The central duct nozzle is removed.
The switches for the heated rear window, heater, rear window wiper and washer, and rear fog lights remain in place.
The outdoor lighting switch is located in a more convenient area relative to the standard location, the lamps for indicating the inclusion of heating and differential lock are located under it.

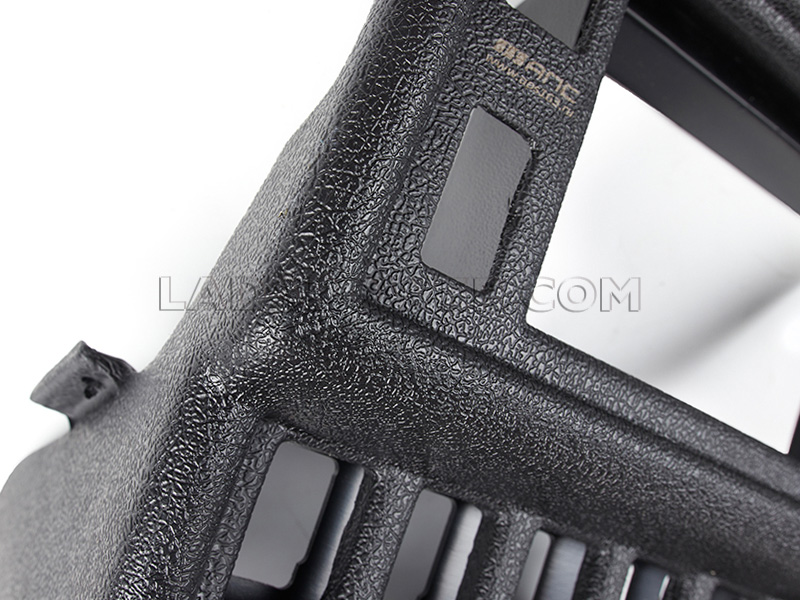

The frame is made of plastic and covered with a decorative film identical to the decorative film of the instrument panel itself.
Installation - https://www.aps163.ru/print.php?id=288
